PlanarformTM Wrinkle G

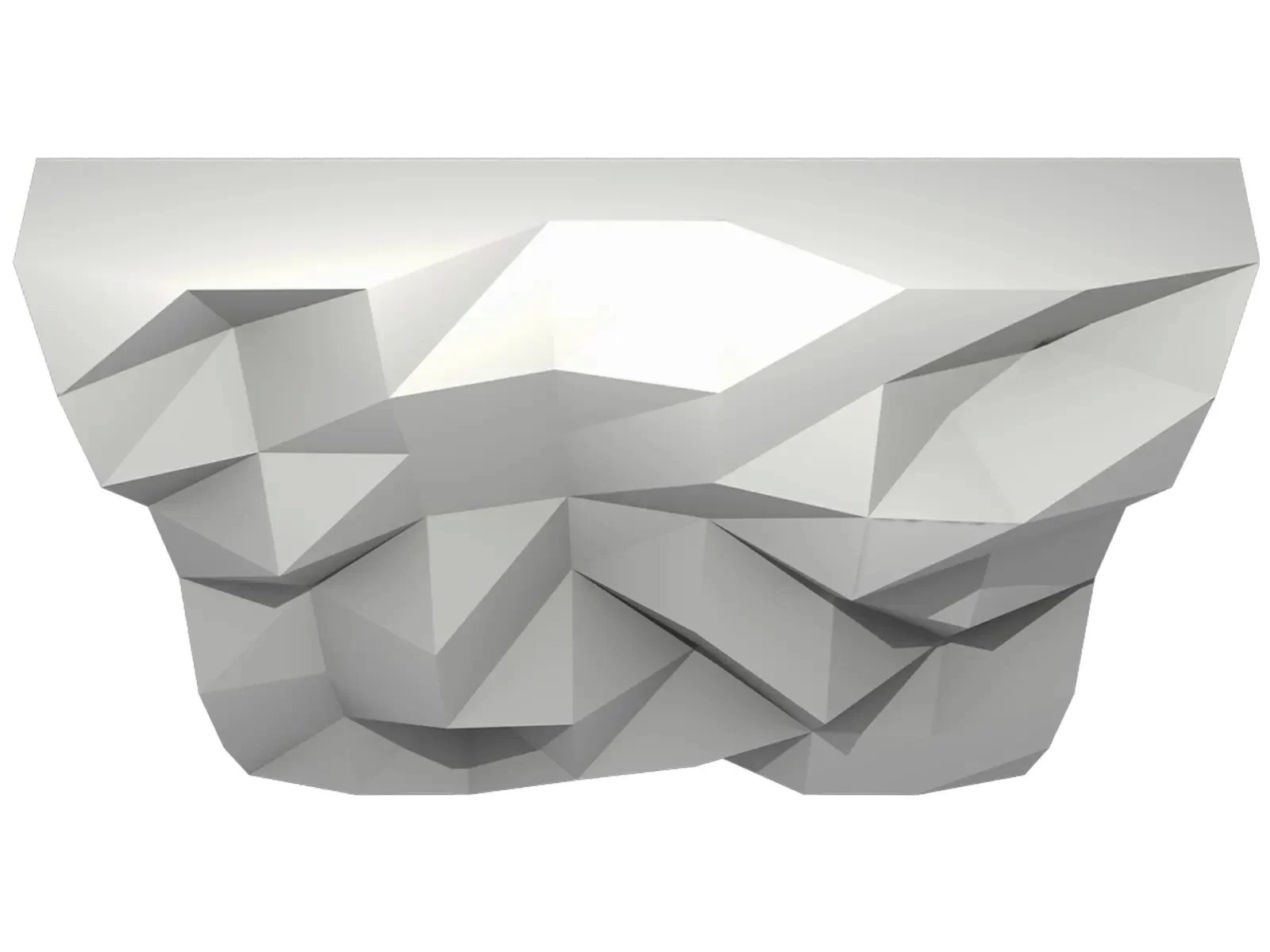

The PlanarformTM Wrinkle G Tile represents the continuing evolution in architectural acoustics towards quantifiable, non-traditional shapes. Made of non-combustible Glass Fiber Reinforced Gypsum (GFRG), it is designed to blend the direct and reflected sound to increase intelligibility; and enhance musical clarity and intimacy in performance spaces like auditoriums, band rooms, choral rooms, etc. The asymmetric PlanarformTM Wrinkle G Tile can be array optimized to reduce periodicity effects.

  • Acoustically optimized shape.
  • Standard size available is nominal 4′ W x 4′ L x 8-1/2″ D.
  • Choose from any commercially available paint color.
  • Stable, non-combustible acoustical glass reinforced gypsum is an excellent choice for commercial projects and offers LEED points.

Overview

PlanarformTM Wrinkle G

The PlanarformTM Wrinkle G Tile represents the continuing evolution in architectural acoustics towards quantifiable, non-traditional shapes. Made of non-combustible Glass Fiber Reinforced Gypsum (GFRG), it is designed to blend the direct and reflected sound to increase intelligibility; and enhance musical clarity and intimacy in performance spaces like auditoriums, band rooms, choral rooms, etc. The asymmetric PlanarformTM Wrinkle G Tile can be array optimized to reduce periodicity effects.

Finish

Available in a natural/raw GFRG finish to be painted on-site or factory color-matched to any paint color specification.

Product Material Composition

Glass Fiber Reinforced Gypsum (GFRG)

Product Acoustic Function

Diffusion

Product Fire Rating

Non-Combustible

Weight PSF

10.00

Installation

Overhead mounting of the PlanarformTM Wrinkle G Tile is achieved by suspending units from integrated hairpin loops using RPG-supplied engineered cables and hardware. Each panel can be hung as a “cloud”, or screwed together to create a canopy. Panels can also be mounted directly onto walls using RPG-provided integrated cleats.
